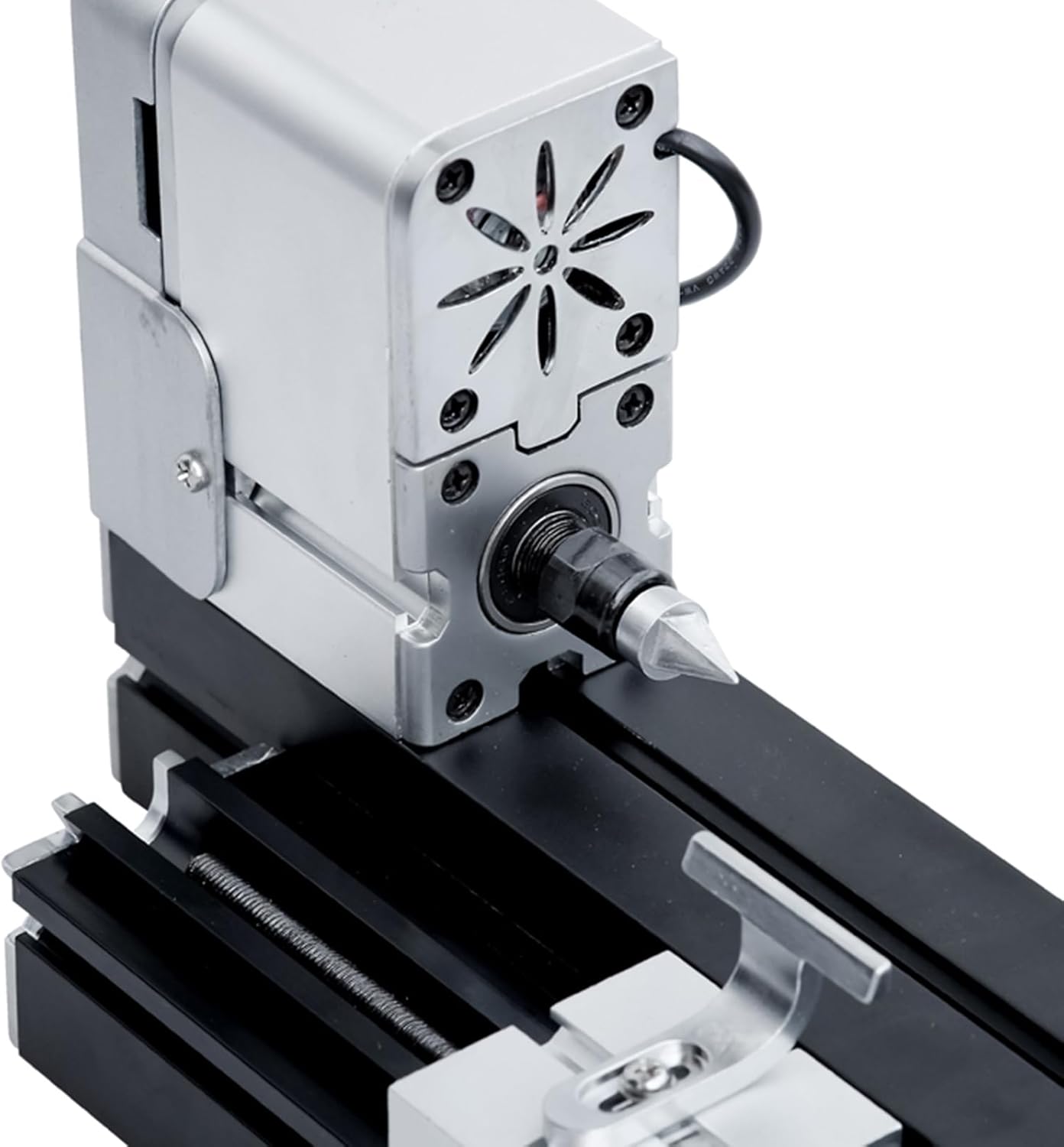

ZHRUI Mini Wood-turning Lathe 36W, 20000rpm All-metal Miniature Machine Tools for DIY WoodWorking Model Making Craft

Technical Parameter:Hi-power motor is adopted with all drive axes, maximum speed up to 20,000 rpmInput voltage/Current /Power: 12V/3A/36WInput Voltage of Switch Power Supply:110V-240VThe largest diameter of processed material: 50mmThe length of processed material: 150mmThe chuck and collets is 1 to 6mmX-axis slider travels: 150mmThe processed materials can be clamped by three-jaw chuck / collets, its maximum diameter is 50mm, center height-25mm, center distance-150 mmMachine size:310mm*100mm*150mm; Bottom plate size: 315mm*200mm*17mm Package Includes:1 x Mini Woodturning Lathe1 x Set of Accessories1 x Power Adapter1 x Workbench Plate1 x User Manual Q1: What's the usage of ZR miniature machine tools? The miniature machine tools have the same features as big industrial machines, the only differences are their size and the 12V drive. You can use it for DIY model making and some little crafts, which is also able to process hard wood, soft metal, alloy etc...Based on its modularity and the child friendly use, that's ideal& creative product to inspire children hand-on skill&innovative ability. Q2: Is it easy to assemble and operate the miniature machine tools? What we provided is the installed complete machine tools, meanwhile, there is full set of English manual & guide videos to show you how to use it smoothly. If you still have any query, please contact us by e-mail / whatsapp/ mobile phone for online service. Q3 : How about the after sales service? Quality guaranteed by the authoritative certificate of CE, RoHS, FCC , ISO9001:2008Free spare parts and one year warranty

• Hi-power motor is adopted with all drive axes, maximum speed up to 20,000 rpm;Input voltage/Current /Power: 12V/3A/36W;Input Voltage of Switch Power Supply:110V-240V
• The largest diameter of processed material: 50mm;The length of processed material:150mm;The chuck and collets is 1 to 6mm;X-axis slider travels:150mm
• The processed materials can be clamped by three-jaw chuck / collets, its maximum diameter is 50mm, center height-25mm, center distance-150mm;Machine size:310mm*100mm*150mm; Bottom plate size: 315mm*200mm*17mm
• The motor case and headstock of all-metal machine tools is jointed completely. Main parts configure with metal structure and no plastic components in the whole machine body, such as motor box, headstock, hand wheels, slider, 3-jaw chunk/4-jaw chunk, turning tools clamping jaw, machine bed, gear, side cover, working table, connection piece, tailstock, countershaft, drive belt cover etc.
• Fan built-in motor is featured with ultra-quiet & high rotary speed. That’s special customized option for motor cooling & effective work.The most parts of machine tools are dealt with two surface treatment methods of electroplating and ink-jet anodized to make appearance more cleaning & glorious, lasting rust-proof.Machine bed is made of Europe standard T-type aluminum material, moving more precisely &smoothly.
• 3C quality assured transformers have the function of over-current, over-voltage and over-heat protection.To improve the stability and service life, the connection block be fixed by square nuts, which avoid screw loosing after long time vibration.The connection piece adopts dovetail structure, which matches with each slot of the machine tools parts to enhance its performance and accuracy.
• Versatile application: The turning tools of mini metal lathe are made of steel material, which can be perfectly used to process the soft metal (gold, silver, copper & aluminum), acrylic and engineering plastics etc.By adding some loose-preventing nuts on the side of small& big slider, not only avoid the gap after excessive vibration, but also improve the processing accuracy.
• The chuck is fixed by a hexagon nut to increase the tightness of the clamping tools (such as drill bits, cutters, wood-turning lathe driver).3/4 semi-circular structure designed hand wheel, that’s quite convenient for dismantling connection blocks.
• The whole hand wheel is made of super alloy material, which be assembled in X, Z axis and tailstock. Featuring with 0.02mm scale line, the hand wheel increases the precision when processing. (The scale lines are molded at one time, aren’t sticky label)
• There are three parallel dovetail slots available on the big slider, which facilitate the movement of mini lathe tools and installment of the holders and the cutlery
